Bunker liners

Professional performance and problem-free installation

GolfDren bunker liners for golf courses are produced in three different basic types. They differ in mat rigidity, strength, and thickness. The bunker liners' cost also varies depending on mentioned factors. No matter the budget or desired level of performance, GolfDren has a bunker liner option that will meet the needs of any golf course. If you are interested in our products or want to learn more, please do not hesitate to contact us.

GolfDren Standard

flexscape bunker liner liner for bunker

It is a suitable solution for fairway bunkers and details of bunker edges, due to its exceptional flexibility.

Technical parameters

Material polyethylene (PE)
Basis weight 900 g/m2
Thickness 6,0 mm

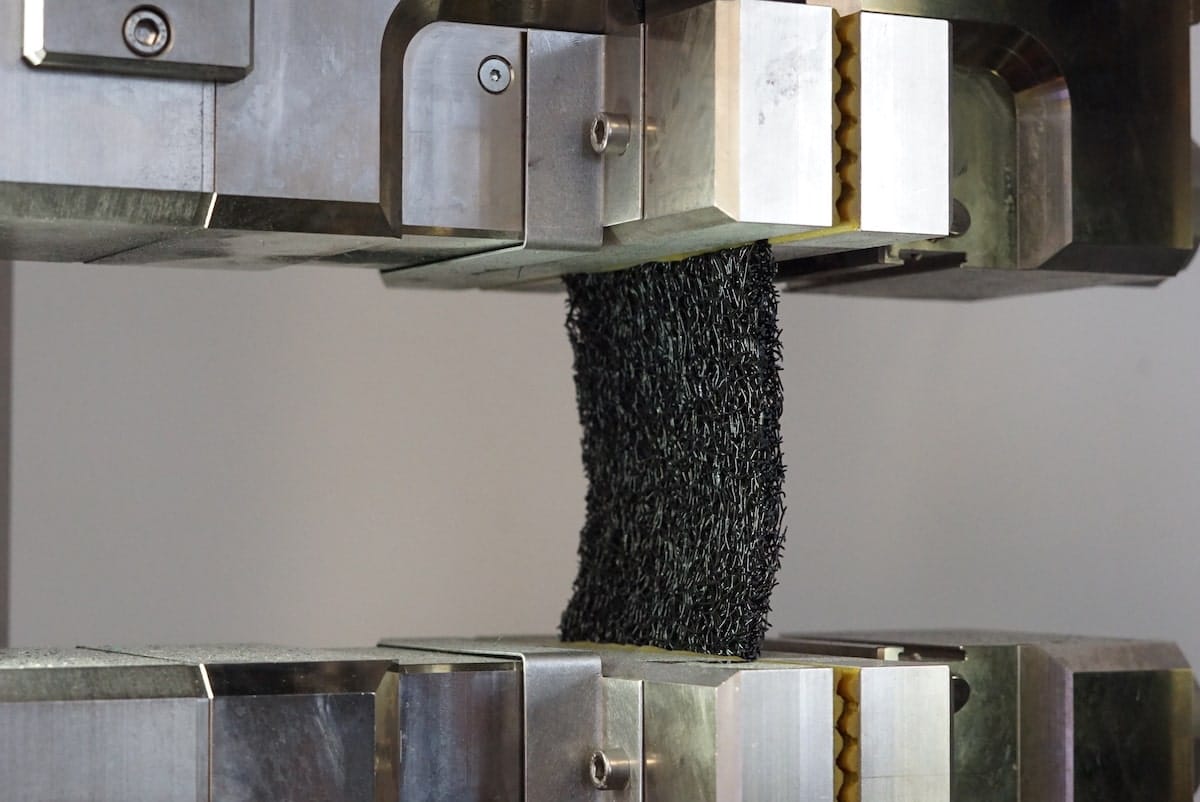

Tensile strength - MD 1,4 kN/m
Tensile strength - CMD 3,5 kN/m
Elongation - MD 20%
Elongation - CMD 15%
Static rupture test 250 N
Dynamic rupture test 25 mm
Water permeability perpendicular to the plane 140 l/(m2/s)
Characteristic opening size O90 0,800 mm
Weather resistance Cover within 1 day after laying
Length of cartridge 35 m
Roll width 1,5 m
Charge area 52,5 m2
Roll diameter cca 50 cm
Roll weight (gross) 50 kg

GolfDren Effect

flexscape bunker liner liner for bunker

Suitable mainly for fairway and green bunkers.

Technical parameters

Material polyethylene (PE)
Basis weight 1500 g/m2
Thickness 7,0 mm
Tensile strength - MD 4 kN/m
Tensile strength - CMD 5 kN/m
Elongation - MD 17%
Elongation - CMD 20%
Static rupture test 600 N
Dynamic rupture test 8 mm
Water permeability perpendicular to the plane 110 l/(m2/s)
Characteristic O90 hole size 0,800 mm
Weather resistance Cover within 1 day after laying
Length of cartridge 25 m
Roll width 1,5 m
Charge area 37,5 m2
Roll diameter cca 50 cm
Roll weight (gross) 59 kg

GolfDren Premium

flexscape bunker liner liner for bunker

Suitable for bunkers in the green area. Its rigidity and strength make it impenetrable.

Technical parameters

Material polyethylene (PE)
Basis weight 1800 g/m2
Thickness 8,0 mm
Tensile strength - MD 5 kN/m
Tensile strength - CMD 6 kN/m
Elongation - MD 20%
Elongation - CMD 20%
Static rupture test 800 N
Dynamic rupture test 7 mm
Water permeability perpendicular to the plane 110 l/(m2/s)
Characteristic O90 hole size 0,800 mm
Weather resistance Cover within 1 day after laying
Length of cartridge 20 m
Roll width 1,5 m
Charge area 30 m2
Roll diameter cca 50 cm
Roll weight (gross) 56 kg
Download the chart

Should you have any questions, do not hesitate to contact us.

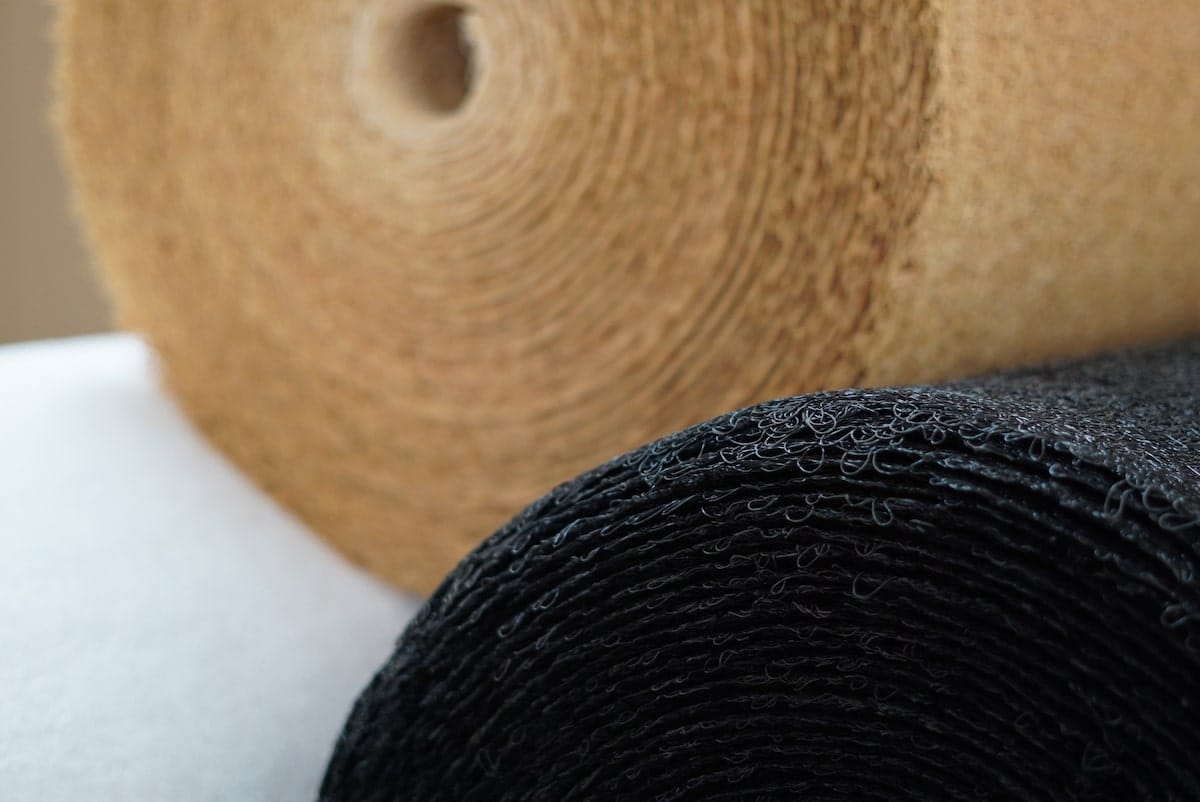

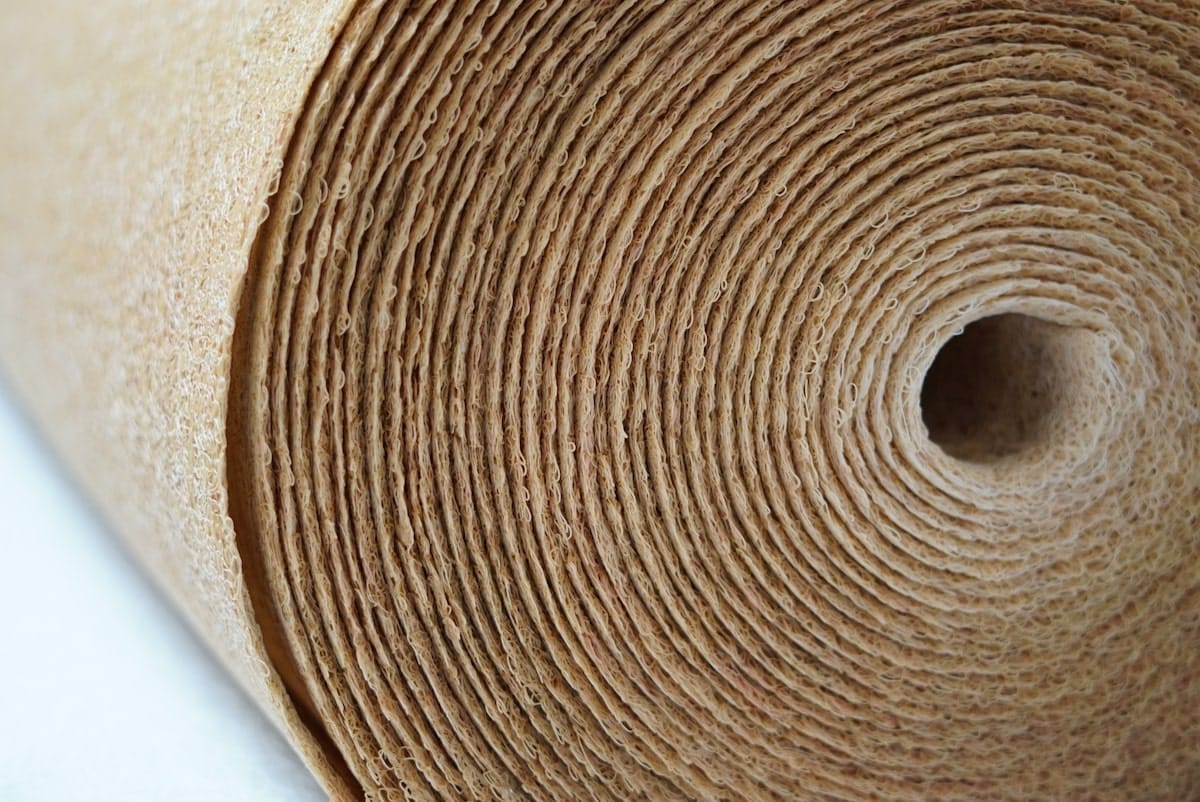

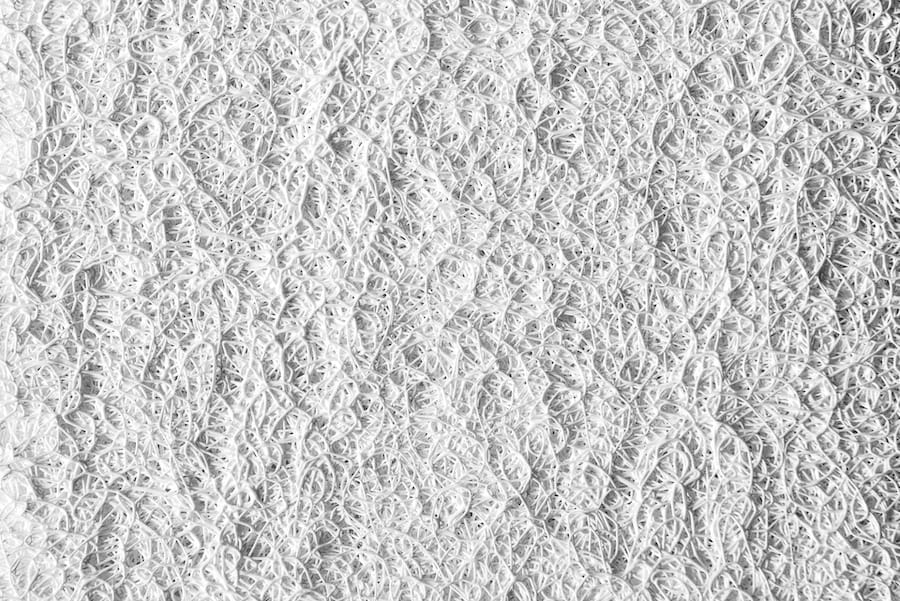

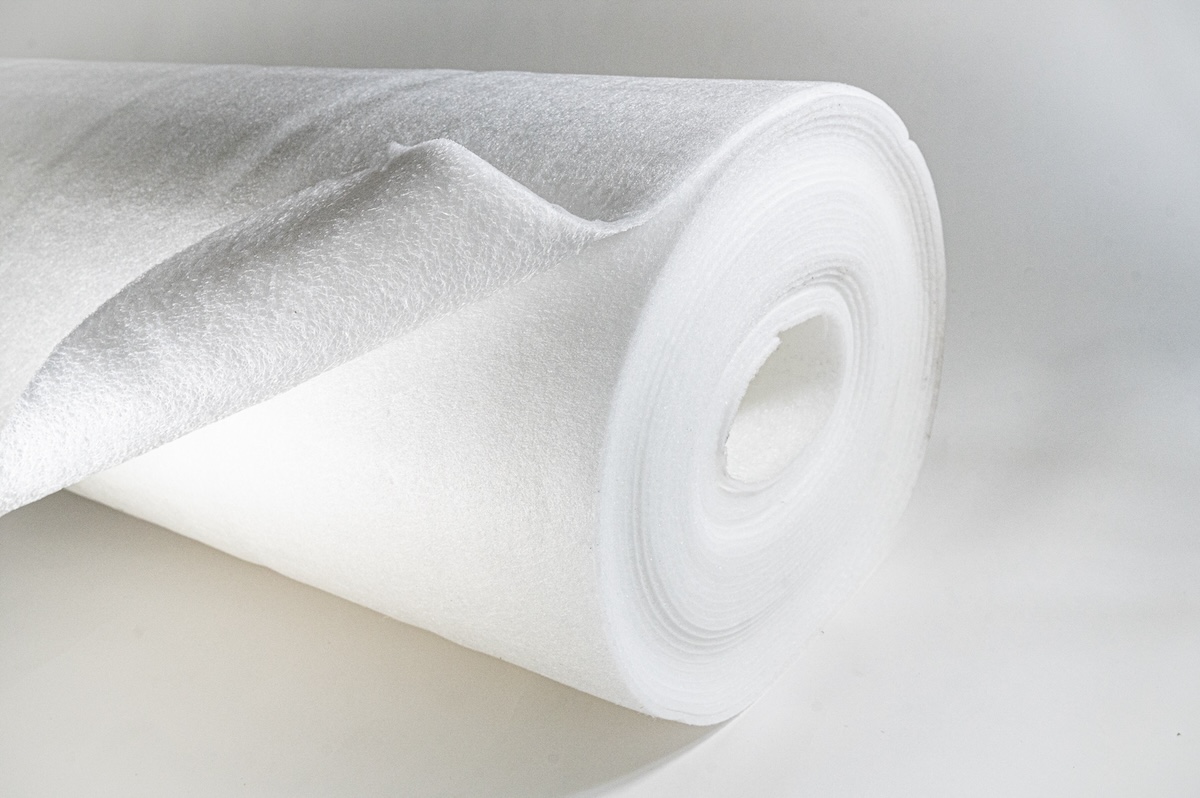

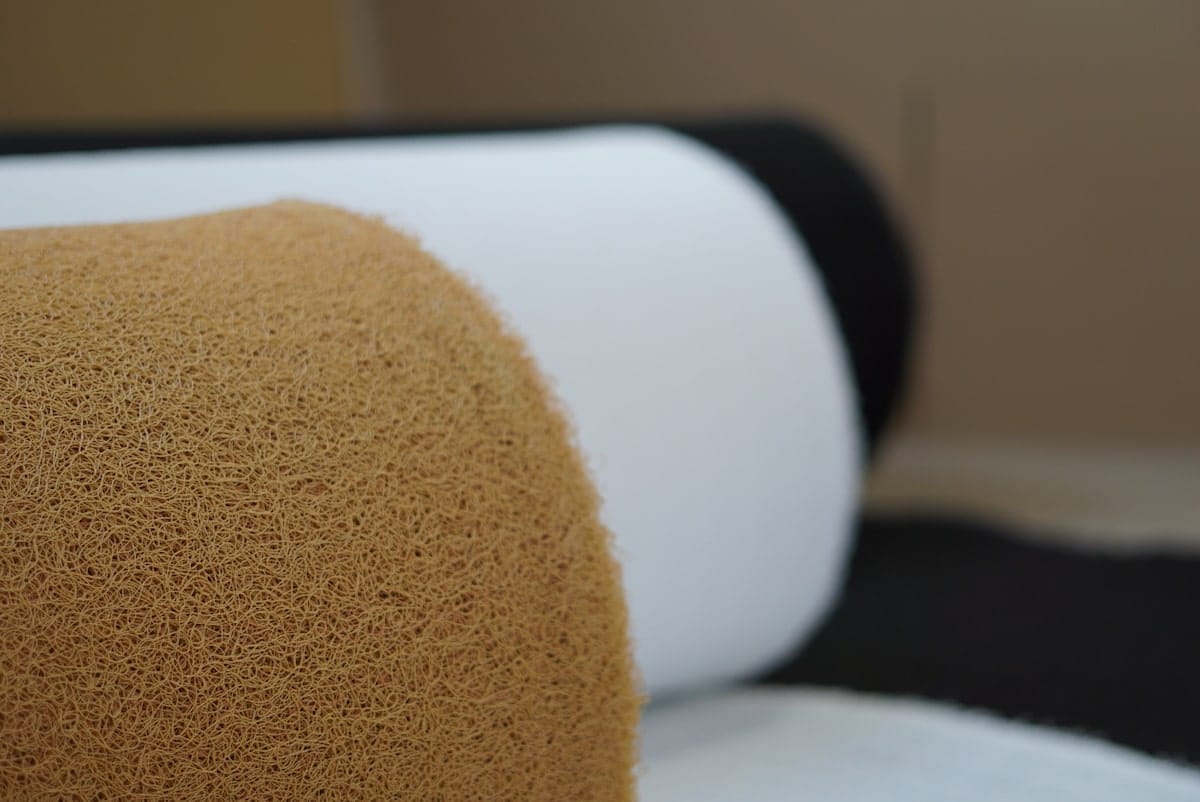

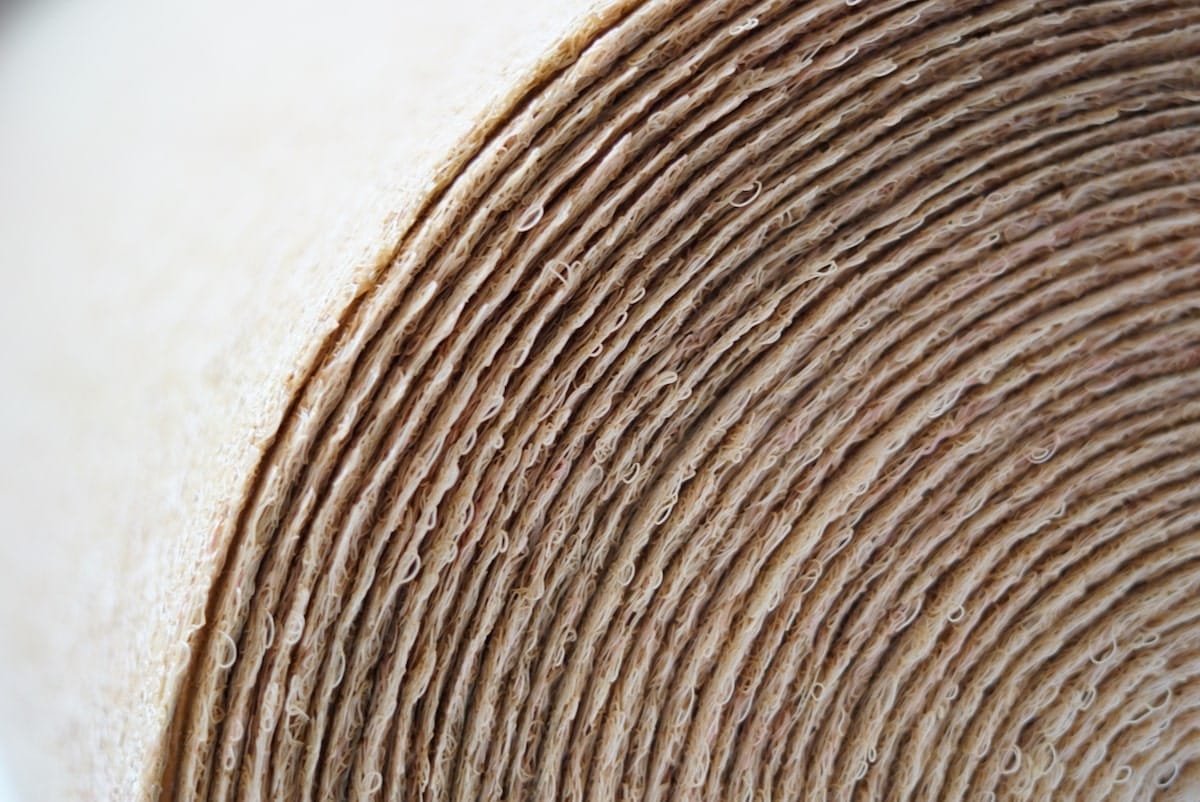

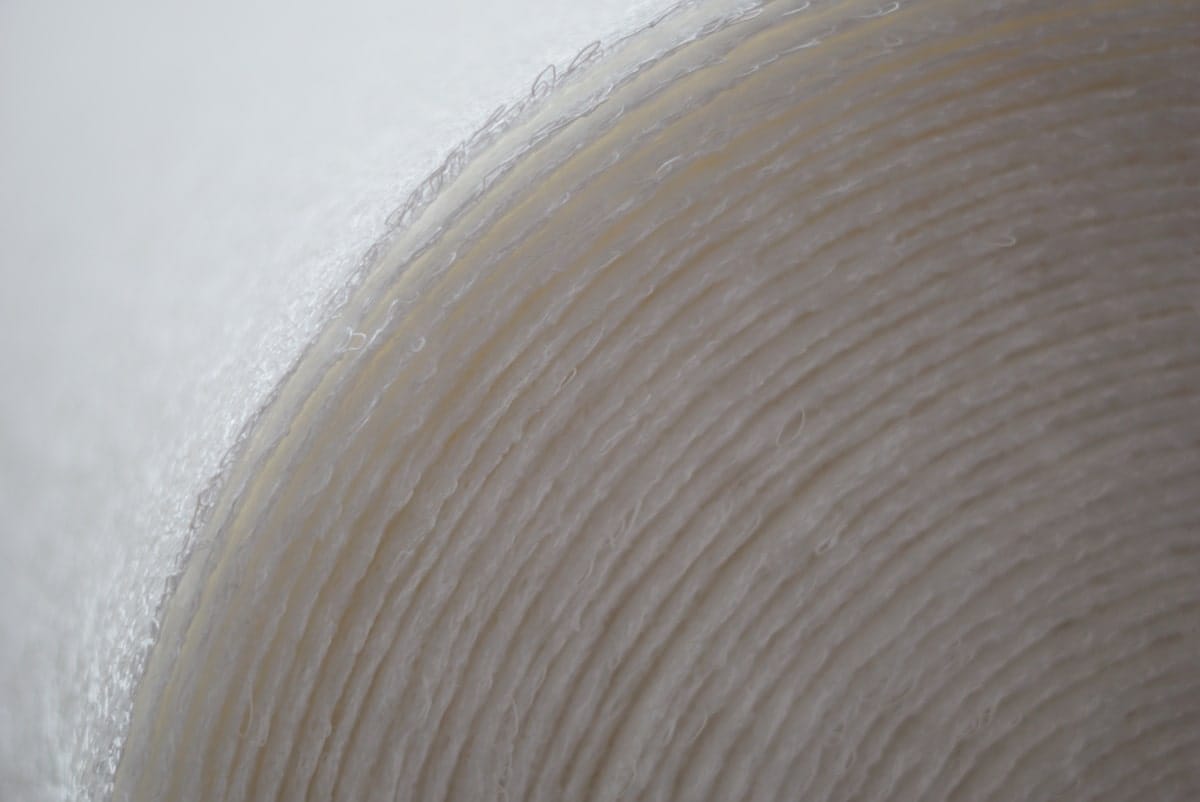

Gallery
